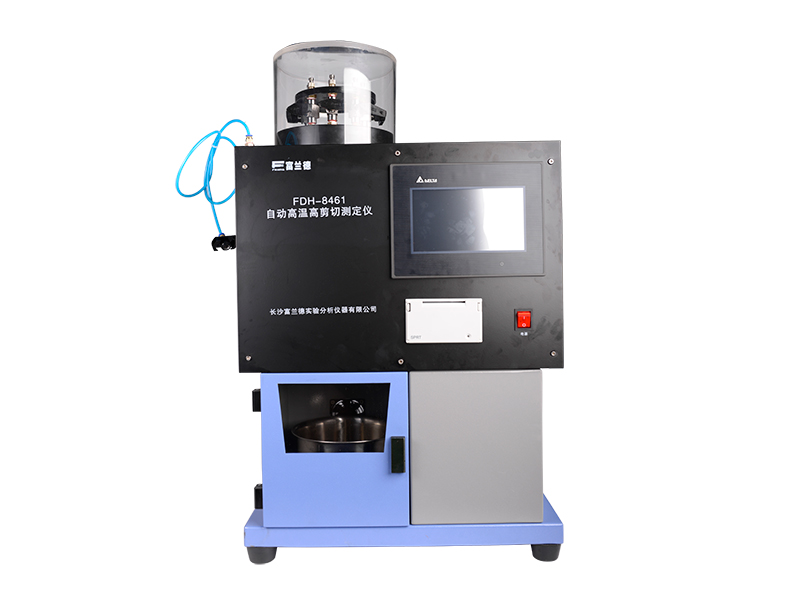

FDH-8461 Automatic High-temperature High-shear Viscosity Tester

Scope of application

The automatic high-temperature high-shear viscometer mainly measures the apparent viscosity of lubricating oil at high temperature and high shear rate. The test principle is to make the sample from the capillary under the pressure of nitrogen (carbon dioxide) under the test condition of 150 °C. The viscometer flows out, and the apparent shear rate of the capillary viscometer reaches a certain apparent viscosity from the outflow time and pressure of the sample, and the viscosity of the oil corresponding to the measured pressure is corrected by the curve of each viscometer.

Features

1. The key components adopt US CN accessories to ensure product quality;

2. using touch screen display, Chinese and English friendly prompt interface

3. using Flanders special high shear viscosity control software, with independent intellectual property rights

4. the use of automatic pressure limiting device to ensure safe operation

5. equipped with imported FTC circuit protection device, automatic shutdown of power supply

6. using EN safety standards, voltage regulator device withstand voltage of 20MPA, to ensure safety

7. using dynamic cellular data acquisition system, establish a large database to provide higher detection accuracy

8. automatic injection, automatic sampling, automatic detection, automatic printing. Support USB data acquisition system

Technical Parameters

1. Applicable standards: ASTM D5481 SH/T0703

2. heating method: infrared variable frequency heating

3. temperature control range: normal temperature ~ 260 ° C ± 0.1 °

4. detection unit: 5 tubes, capillary diameter 0.15mm

5. pressure range: 20MPA

6. sample capacity: 7ml ± 1ml

7. display mode: touch screen display

8. software copyright: FRIEND special software

9. working power: AC220V 50HZ
