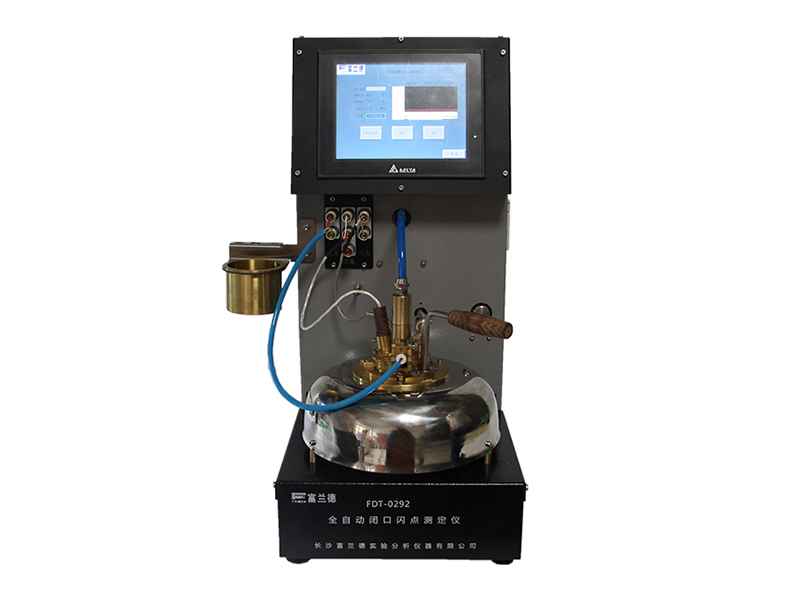

FDT-0292 Automatic Closed Flash Point Tester

Scope

According to latest standard GB/T261, ASTM D93, ISO 2719 "flash point method of petroleum products (closed cup method)" design and manufacturing.

Features

1. For different types of samples, can choose A, B two experimental steps , also can customize the stirring speed;

2. The use of annular heating structure, heating is more uniform, heating rate is more accurate;

3. Using air-cooled temperature control system to ensure that the furnace body temperature is the same;

4. With self-diagnosis function, instrument failure automatic prompt function;

5. With self-temperature protection, over-temperature range can be set;

6. Touch screen display, real-time simulation tracking function curve showing temperature rise and test time,

real-time prompting function of operation interface;

7. The self-developed constant current technology is used to ensure that the heat of the platinum wire is uniform

and the accuracy of the instrument is improved;

8. Using precision machining technology, the overall structure meets ASTM D93 standards;

9. Two kinds of air source and electronic ignition device are used.

Technical Parameters

1. Working power: AC 220V±10%, 50Hz

2. Range: room temperature ~ 300 °C; resolution: 0.1 °C

3. Heating rate: 5 (°C / min) ~ 6 (°C / min) (GB/T 261 steps A, ASTM D93 A method)

1 (°C / min) ~ 1.5 (°C / min) (GB/T 261 Step B, ASTM D93 B method)

4. Stirring speed: 90 (r./min) ~ 120 (r./min). (GB/T 261 step A, ASTM D93 A method)

250(r/min)±10(r/min). (GB/T261 step B, ASTM D93 B method)

5. Ignition: electric ignition and gas ignition

6. Adapt to the ambient temperature: 10-45 °C

7. Adapt to the environment humidity: <85%

8. The whole power consumption: 500W
