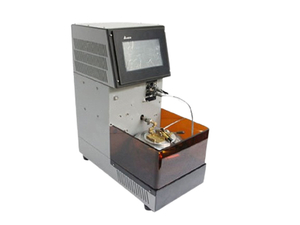

FDT-0294 Fully Automatic Open Flash Point Tester

Scope of application

The automatic open flash point tester is designed and manufactured according to ASTM D29, GB / T3536-2008 standard "Petroleum Product Flash point and ignition point Measurement Method (Cleveland Open cup method)". For oil products with open cup flash point higher than 79℃

Functional characteristics

1. Color LCD screen display, touch operation, real-time tracking of the function curve of heating display and test time, operation real-time prompt function;

2. with multi-point dynamic calibration function and static calibration function (take care of the accuracy of the results at each temperature point);

3. unique automatic lifting arm design, no need to manually install the flash point cup cover, after the cup cover automatically tilt, convenient cleaning;

4. the heating system can provide uniform heating, and the heating rate meets the standard requirements;

5. built-in inlet pressure sensor, can automatically correct the result value;

6. the ignition method adopts gas ignition, equipped with a small liquefied gas tank, the ignition temperature is stable, high repeatability, and convenient

Technical parameter

1. Range of temperature control: room temperature ~400℃; resolution: 0.1℃

2. Temperature increase speed: initial temperature increase: 14 (℃ / min) ~17 (℃ / min)

End-stage temperature increase 5 (℃ / min) ~6 (℃ / min)

3. detection method: ion ring and thermoelectric element gas double detection

4. ignition mode: gas ignition

5. Display mode: touch screen display, software operation

6. repeatability: ± 2℃

7. data output: built-in printer printing, USB interface, can directly be exported through the U disk data
